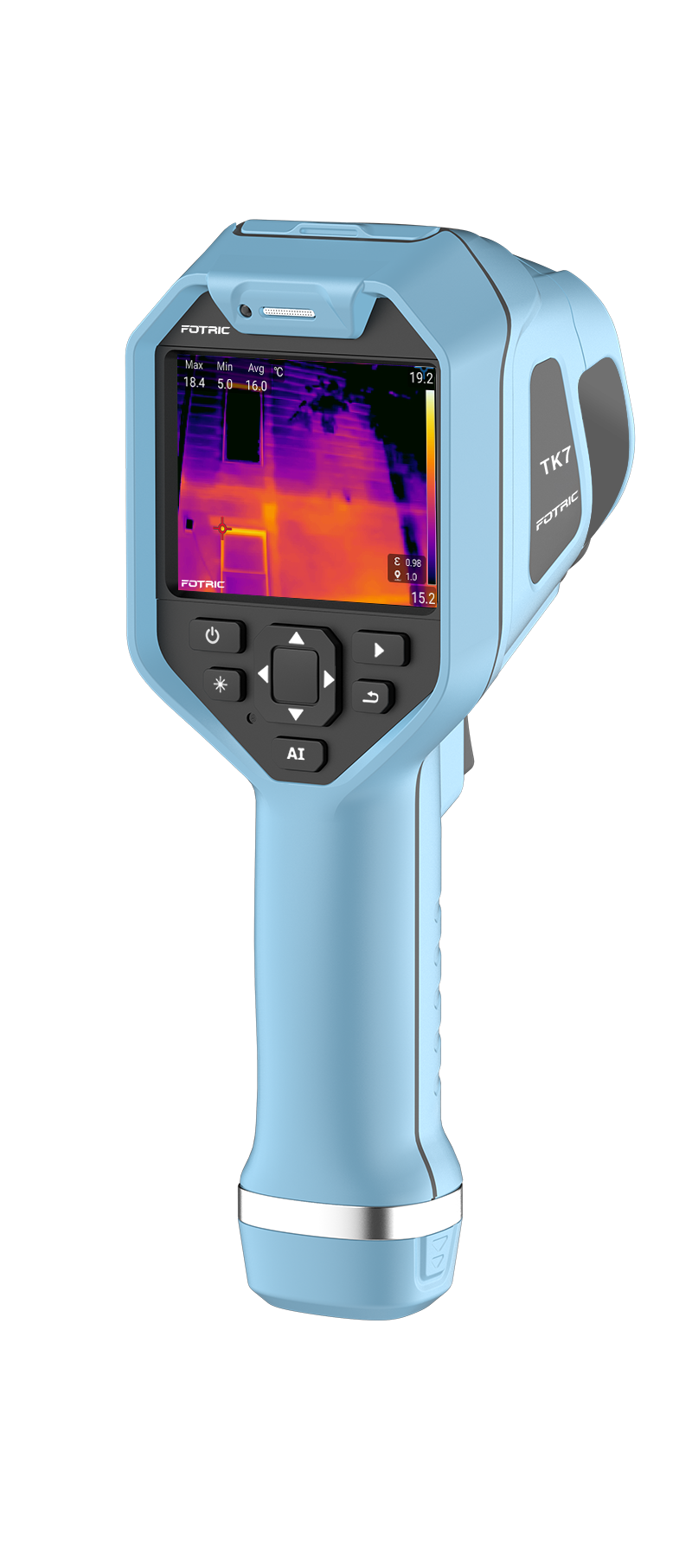

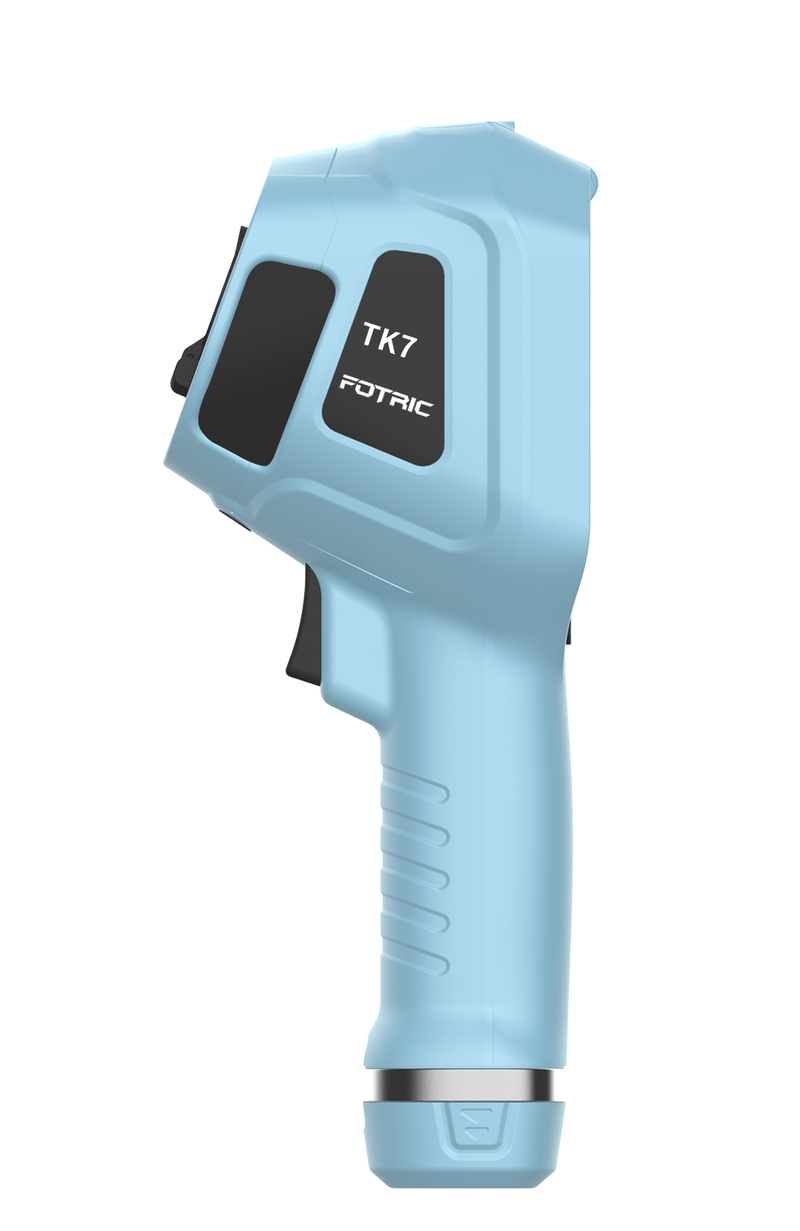

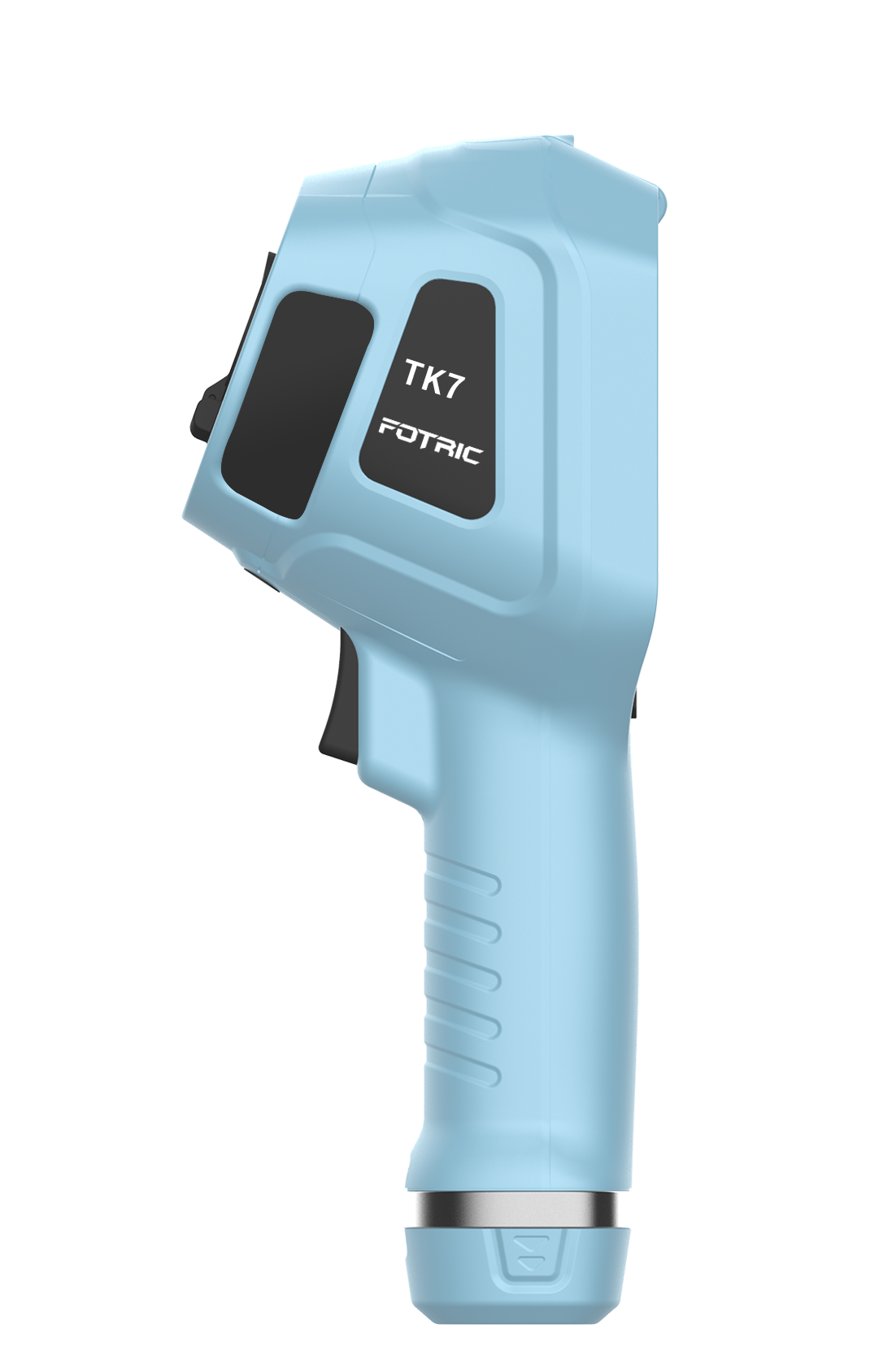

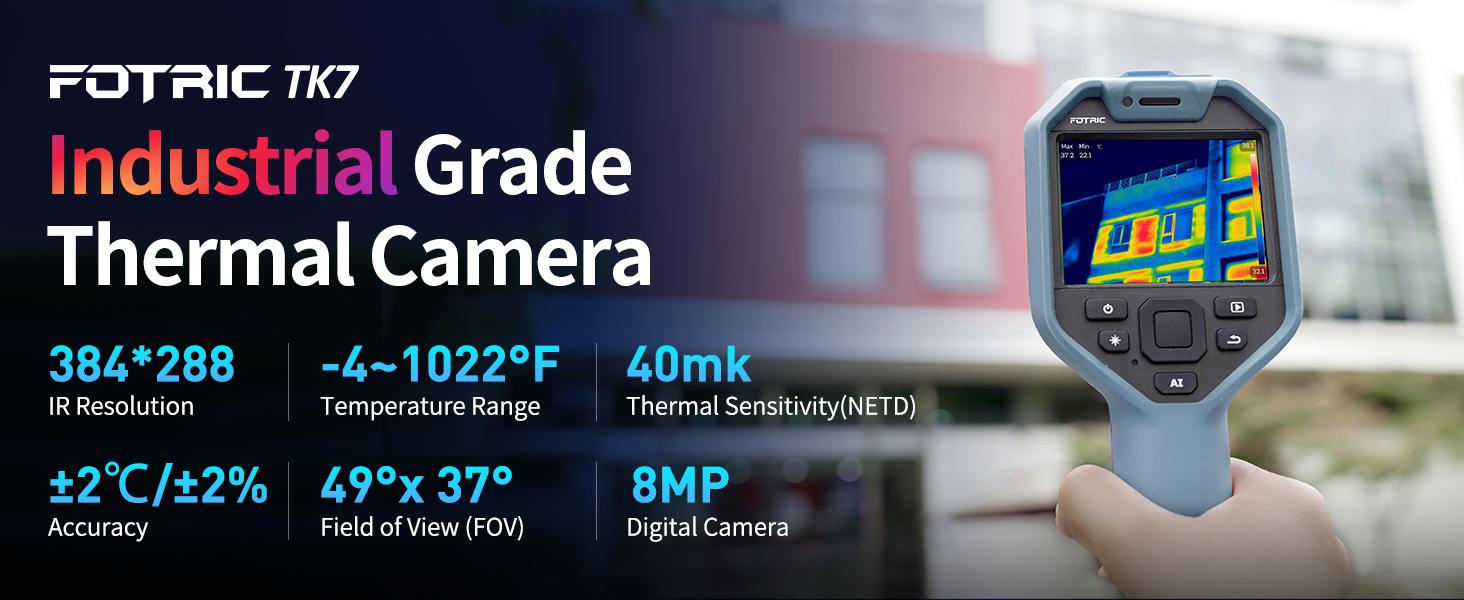

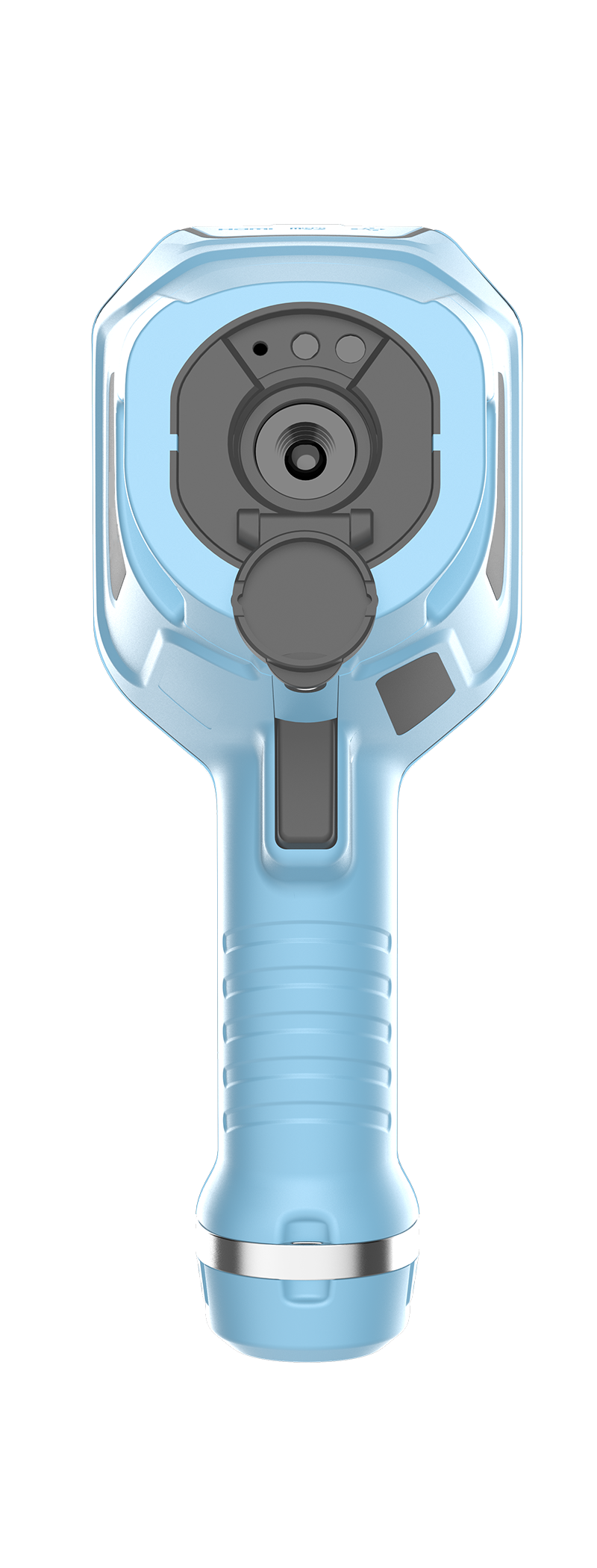

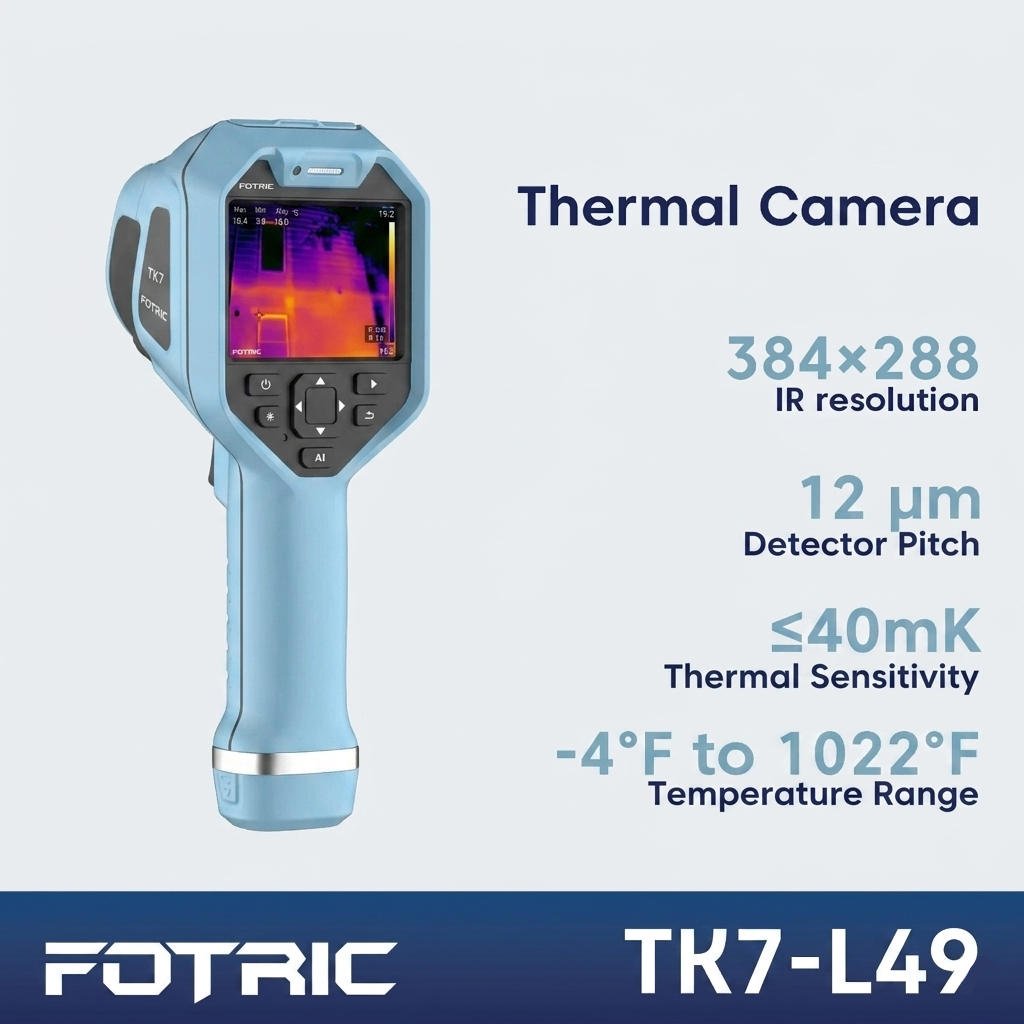

FOTRIC TK7 Thermal Imaging Camera
FOTRIC TK7 Thermal Imaging Camera, 384 x 288 IR Resolution , 49°*37° FOV, Focus free Thermal Imager with 8MP Visual Camera for Building, Electrical Inspections, -4°F to 1022°F, 3.5" Touch Screen
- Prezzo di listino
- $1,499.00
- Prezzo di vendita
- $1,499.00
- Prezzo di listino
-
Spedizione calcolata al momento del pagamento.
-

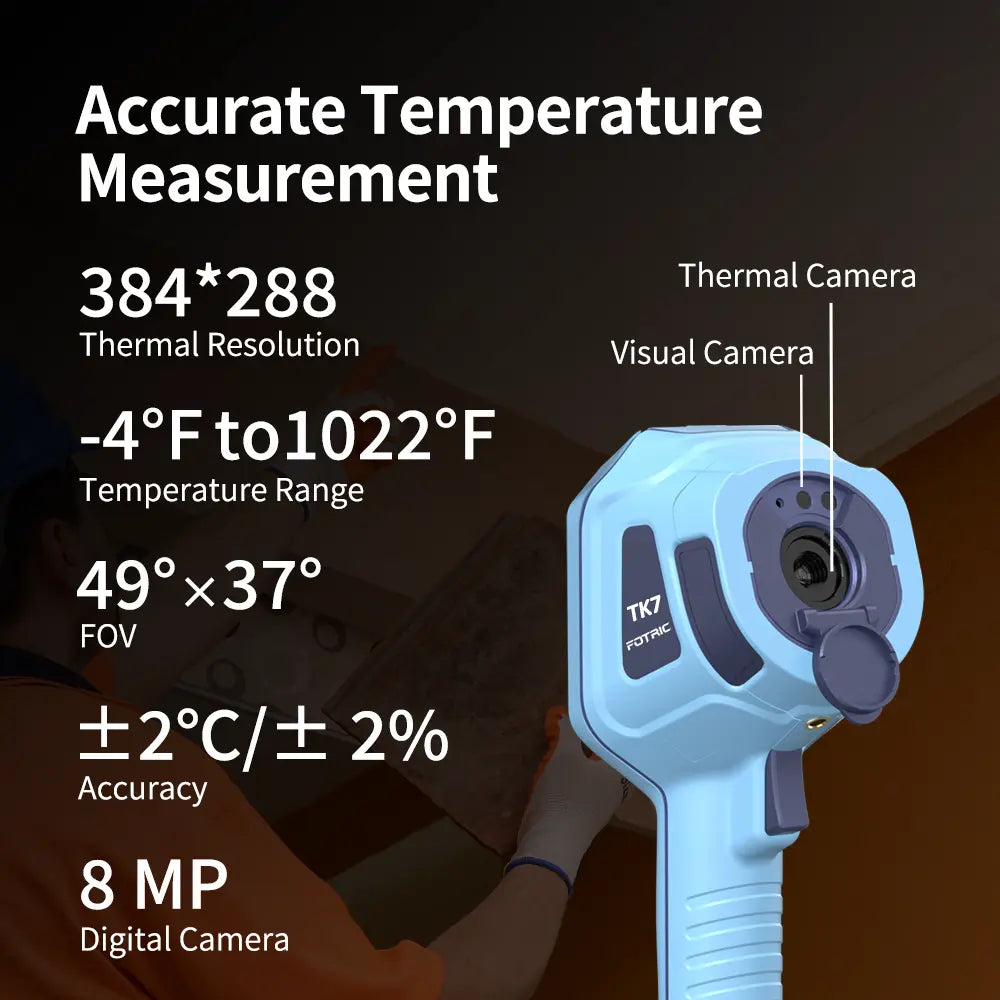

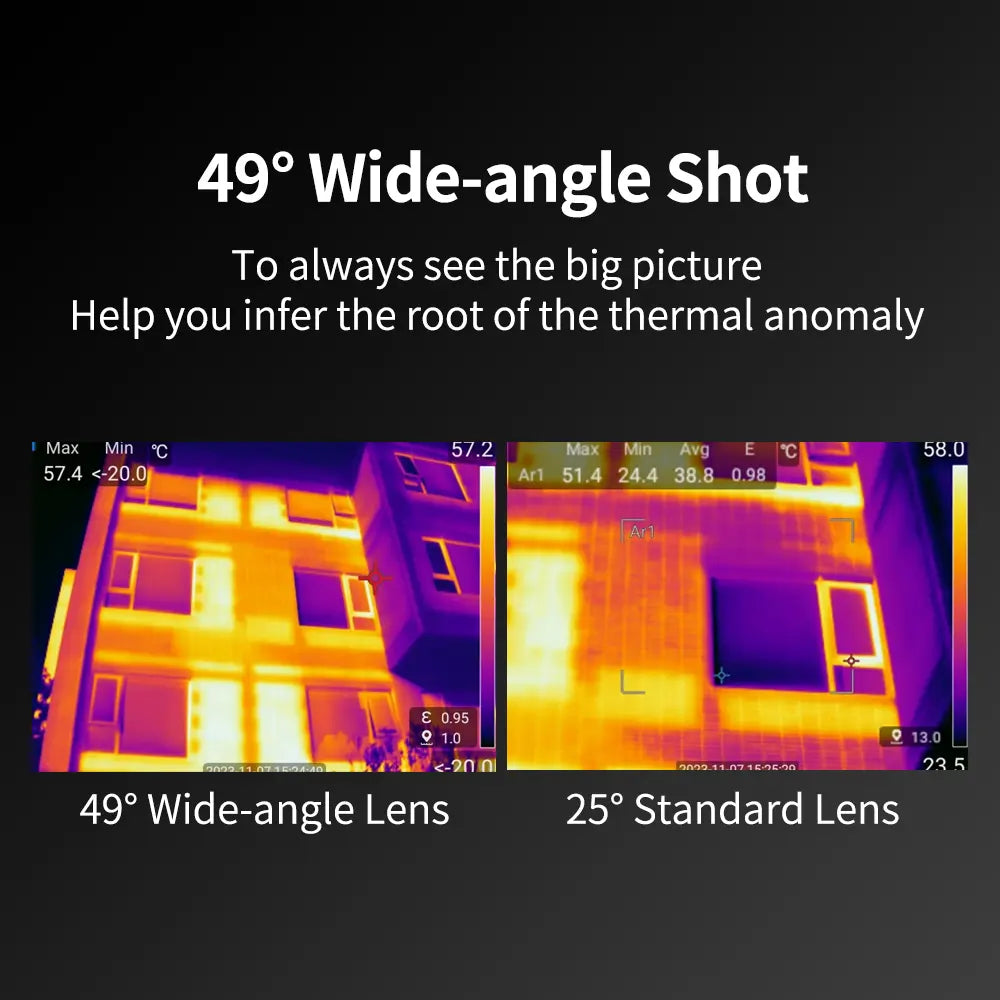

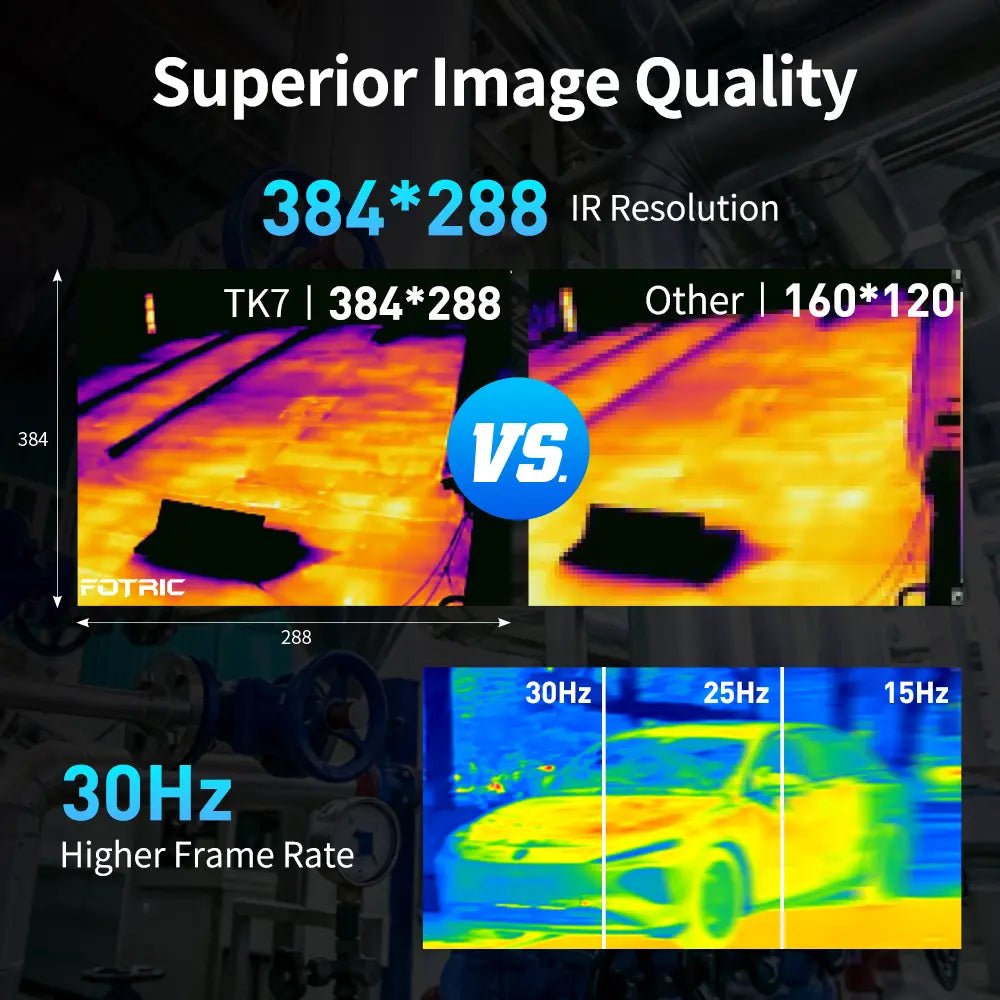

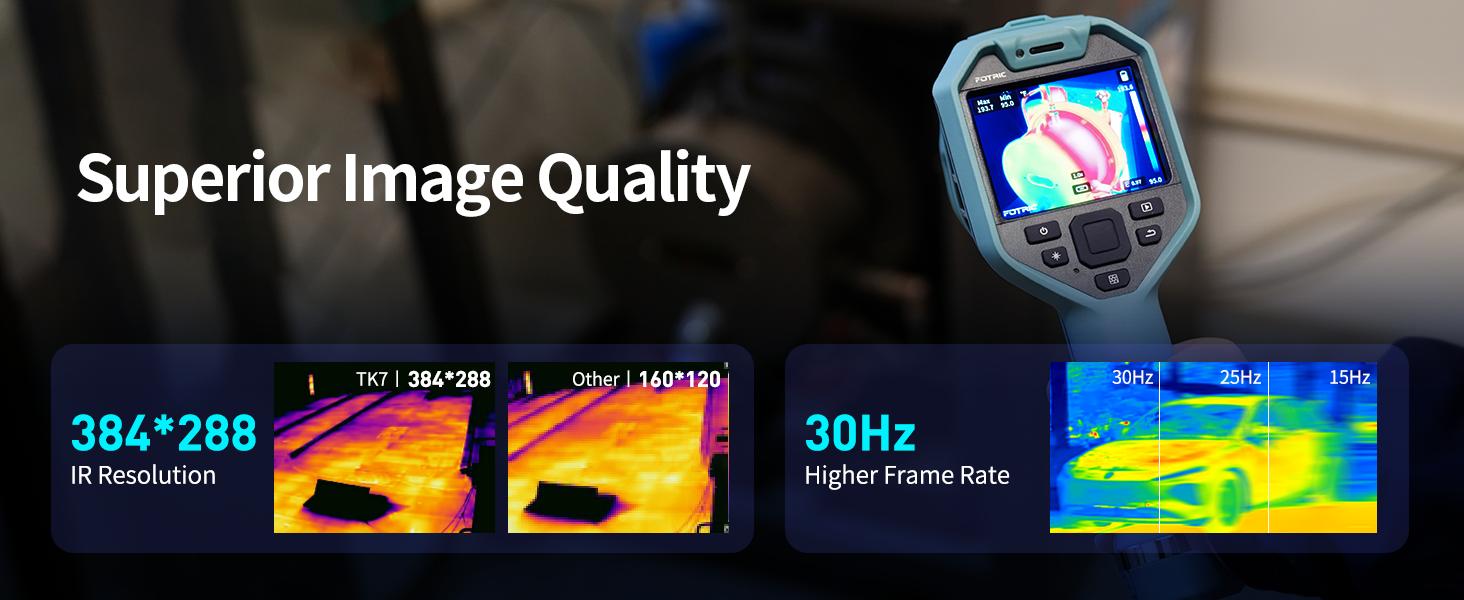

Clear Thermal Imaging with True 384 × 288 Resolution
Equipped with a true 384 × 288 infrared detector and a wide 49° × 37° field of view, TK7 delivers clear thermal images for fast scanning and general inspection tasks. The focus-free design allows users to capture thermal images instantly without manual adjustment. -

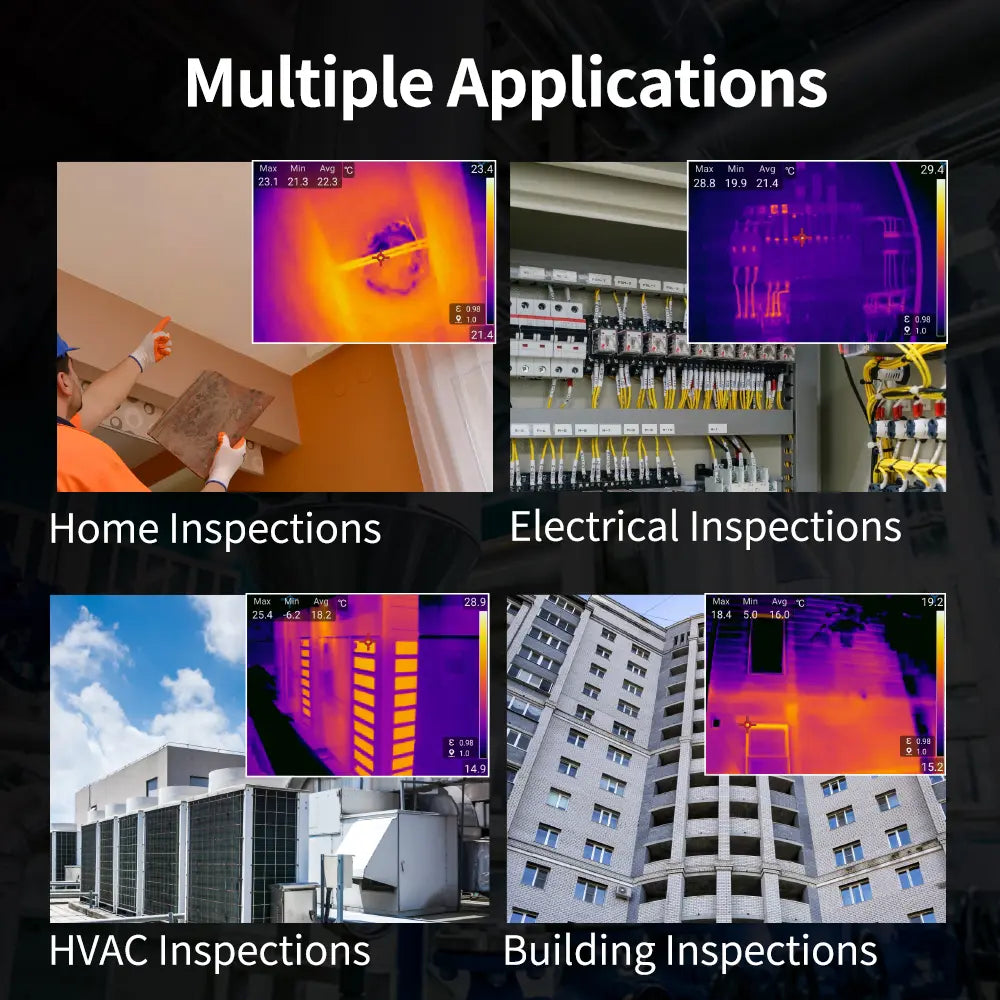

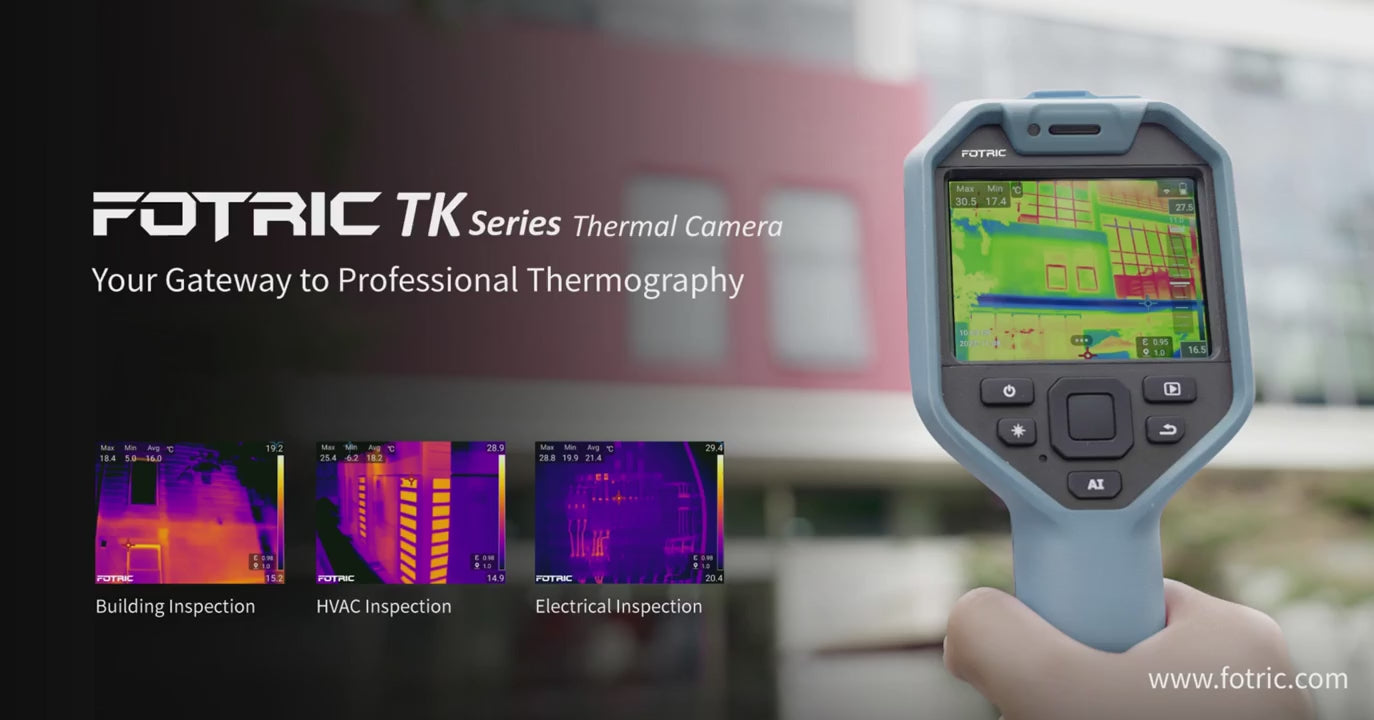

Ideal for Everyday Inspection Applications
Designed for routine electrical, mechanical, HVAC, and building inspections, TK7 helps quickly identify overheating components, insulation issues, and abnormal temperature patterns—enabling efficient, non-contact fault detection. -
Wide Temperature Measurement Range
Covers a broad temperature range from −4 °F to 1022 °F (−20 °C to 550 °C), making it suitable for a variety of industrial and maintenance scenarios, from low-temperature environments to high-heat equipment checks. -
Thermal & Visual Image Fusion
Features an 8-megapixel visual camera that works alongside thermal imaging, providing clear visual references to improve inspection accuracy and reporting clarity. -
Touchscreen Operation in a Compact Design
The 3.5" touchscreen offers intuitive operation and clear visualization of thermal data, while the lightweight, handheld form factor makes TK7 easy to carry and use for daily inspections.
FOTRIC develops professional thermal and acoustic imaging solutions for industrial and inspection applications.
FOTRIC thermal cameras are suitable for engineers, electricians, maintenance teams, researchers, and industrial inspection professionals.
Yes, FOTRIC cameras support PC software and mobile applications for analysis, reporting, and real-time monitoring.
FOTRIC provides professional technical support, firmware updates, and continuous software improvements.
Specifications
- IR Resolution(SR) 384*288
- Thermal Sensitivity（NETD) 40mk(0.04°C)@30°C
- Lens /Field of View 49°x 37°
- Focus Mode Focus free
- Frame Rate 40Hz
- Build-in digital camera 8 MP industrial camera

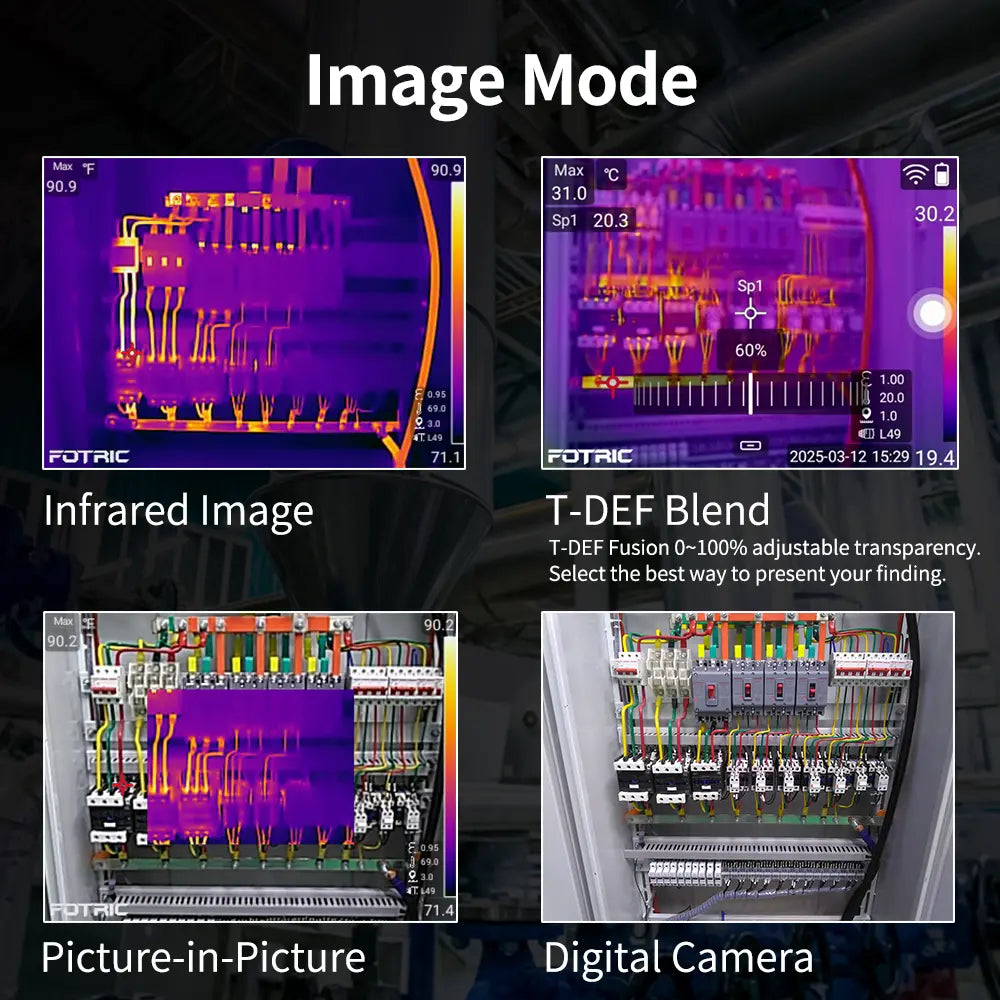

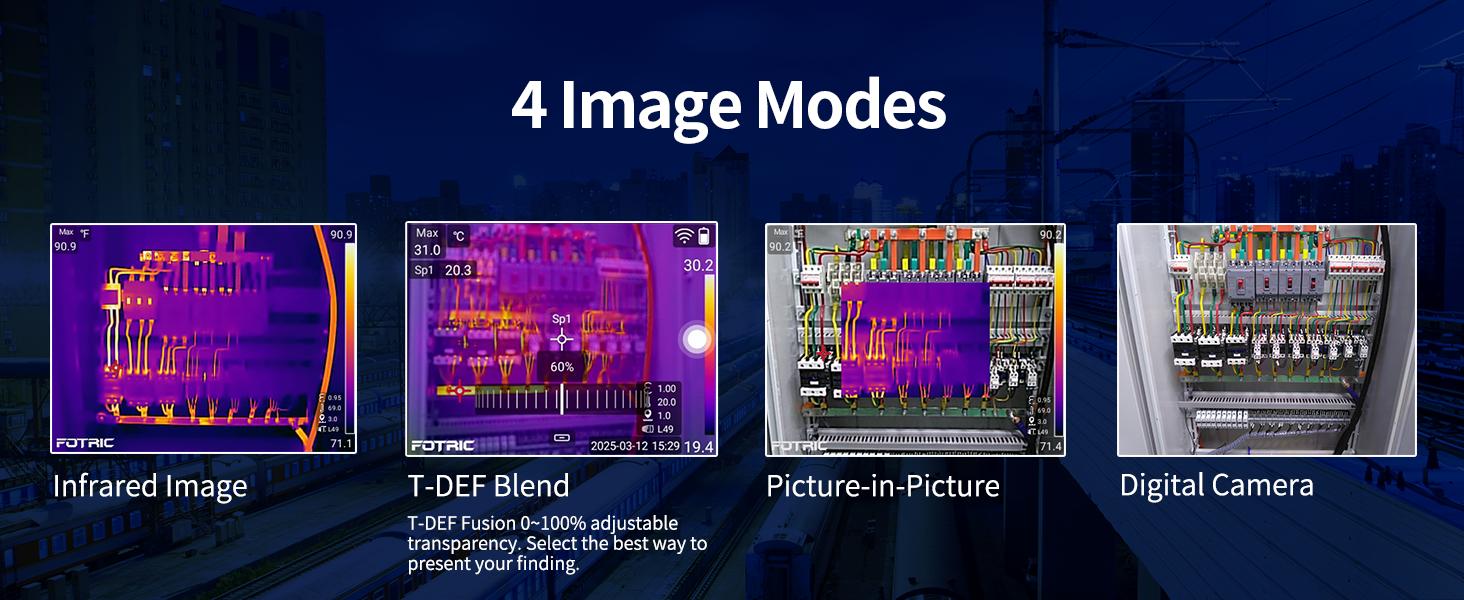

- Image Modes Thermal Image Mode, Visible Light Mode, Picture in Picture Mode, T-DEF (Image Fusion) Mode
- Temperature Range -20 °C to 550°C
- Measurement Accuracy ±2 °C or 2% , whichever is greater (at 25 °C ambient temperature）
- Measurement Tools Spot：6 Line：3 Rectangle/Circle：4
- Palettes 8 Palettes，8 Inverted Palettes
- Storage Card TF card, 32GB, expandable to 128GB
- Voice & Text Annotation Support (120 seconds for voice annotation)
- Battery Rechargeable Li-ion, 3.6V, 5000mAh,≥4 hours
- Operation temperature -20°C to 50°C
- Storage temperature -40°C to 70°C， without battery
- Drop 2m(GB/T 2423.8/IEC 60068-2-32)
- Enclosure rating IP54
- Weight ( include battery) 800g
