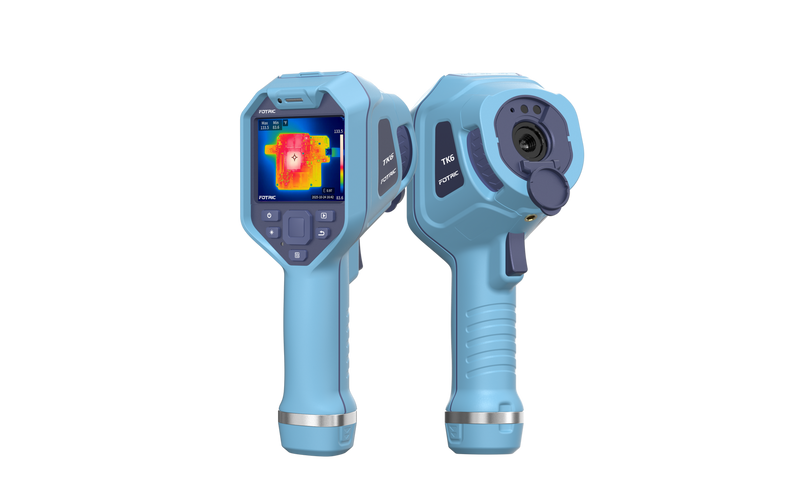

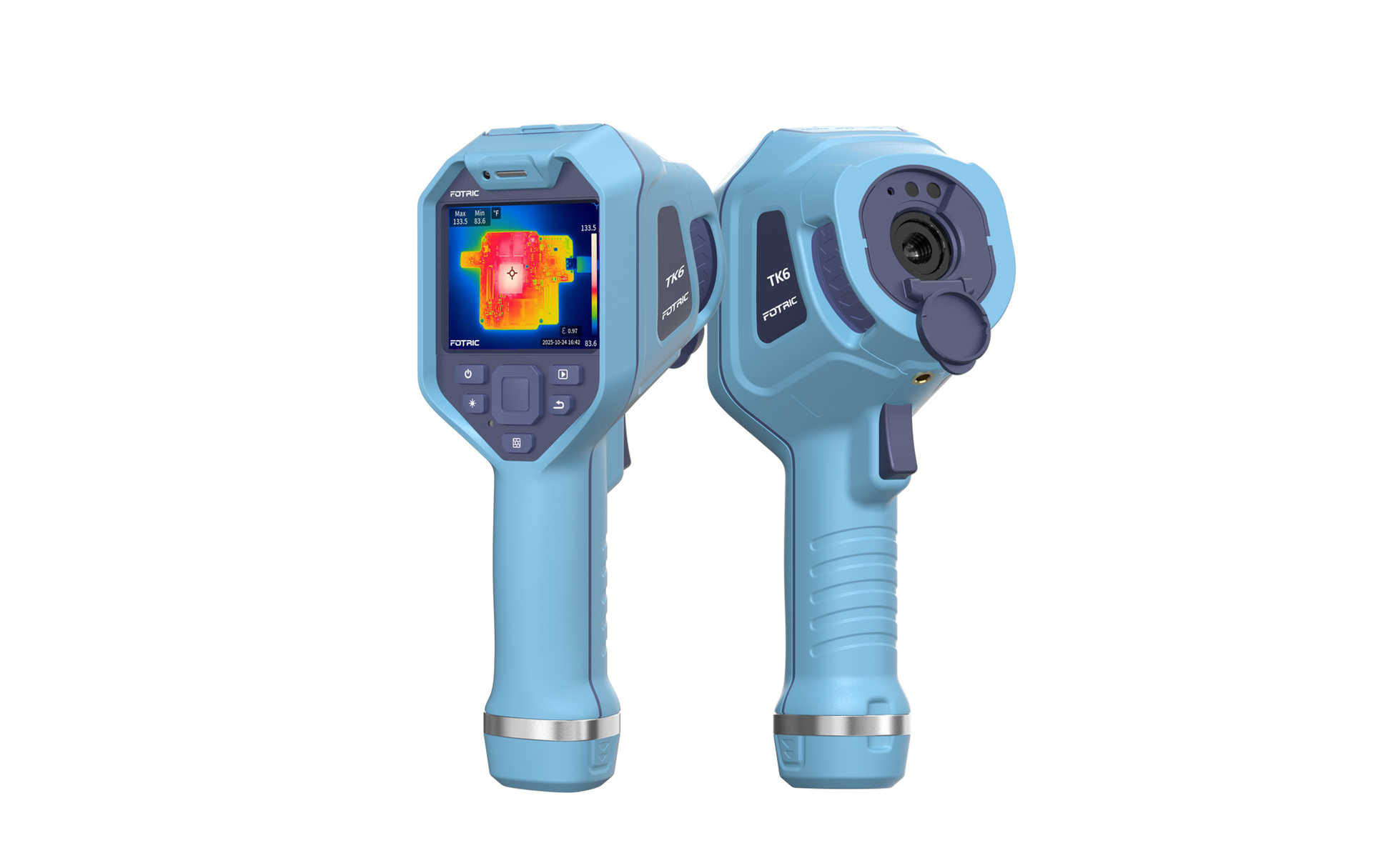

FOTRIC TK6 Thermal Imaging Camera
$829.99
FOTRIC TK6 Thermal Imaging Camera

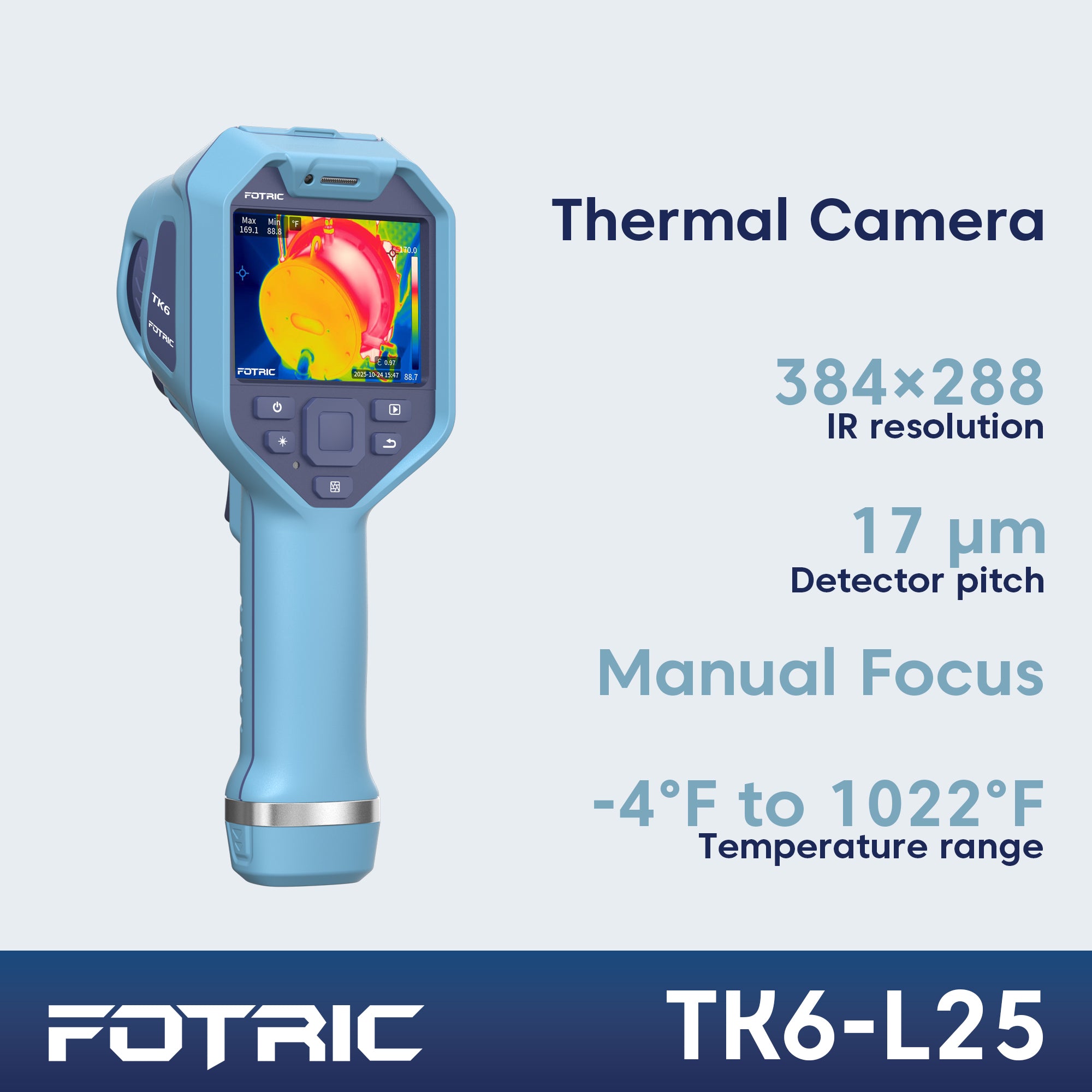

384 x 288 IR Resolution , 25°*19° FOV, Manual Focus Thermal Imager with 5MP Visual Camera for Building, Electrical Inspections, -4°F to 1022°F, 3.5" Touch Screen
- Regular price
- $829.99
- Sale price
- $829.99
- Regular price
-
Shipping calculated at checkout.
Description
-
Professional-Grade Thermal Imaging

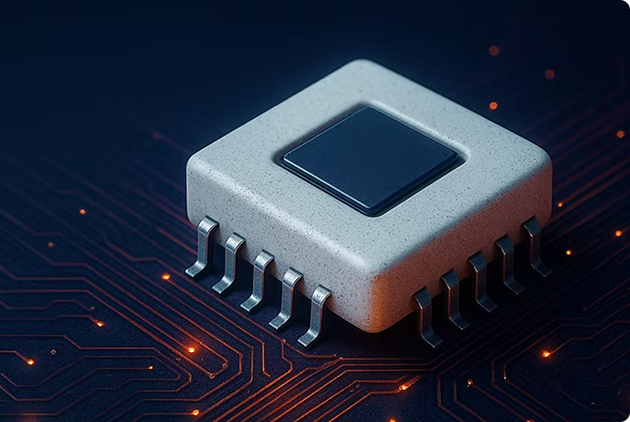

FOTRIC TK6 combines a true 384 × 288 infrared detector (110,592 real pixels) with ceramic sensor packaging, ensuring durability, accuracy, and reliability in demanding industrial environments. In the thermal imaging industry, 384 × 288 and above defines the professional class—below this range, most products rely on interpolated or algorithmic “up-res” methods that simulate higher resolution rather than capturing it. -
High Precision
At its core, the TK6 employs a 17 µm pixel-pitch detector, larger than the 12 µm sensors commonly used in budget models. The result is a stronger signal-to-noise ratio and sharper, higher-contrast thermal images, especially when detecting subtle temperature differences. With 40 mK thermal sensitivity, TK6 detects temperature differences as small as 0.04 °C—ideal for pinpointing electrical hotspots, heat leaks, electrical faults, or building defects. -
Manual Focus

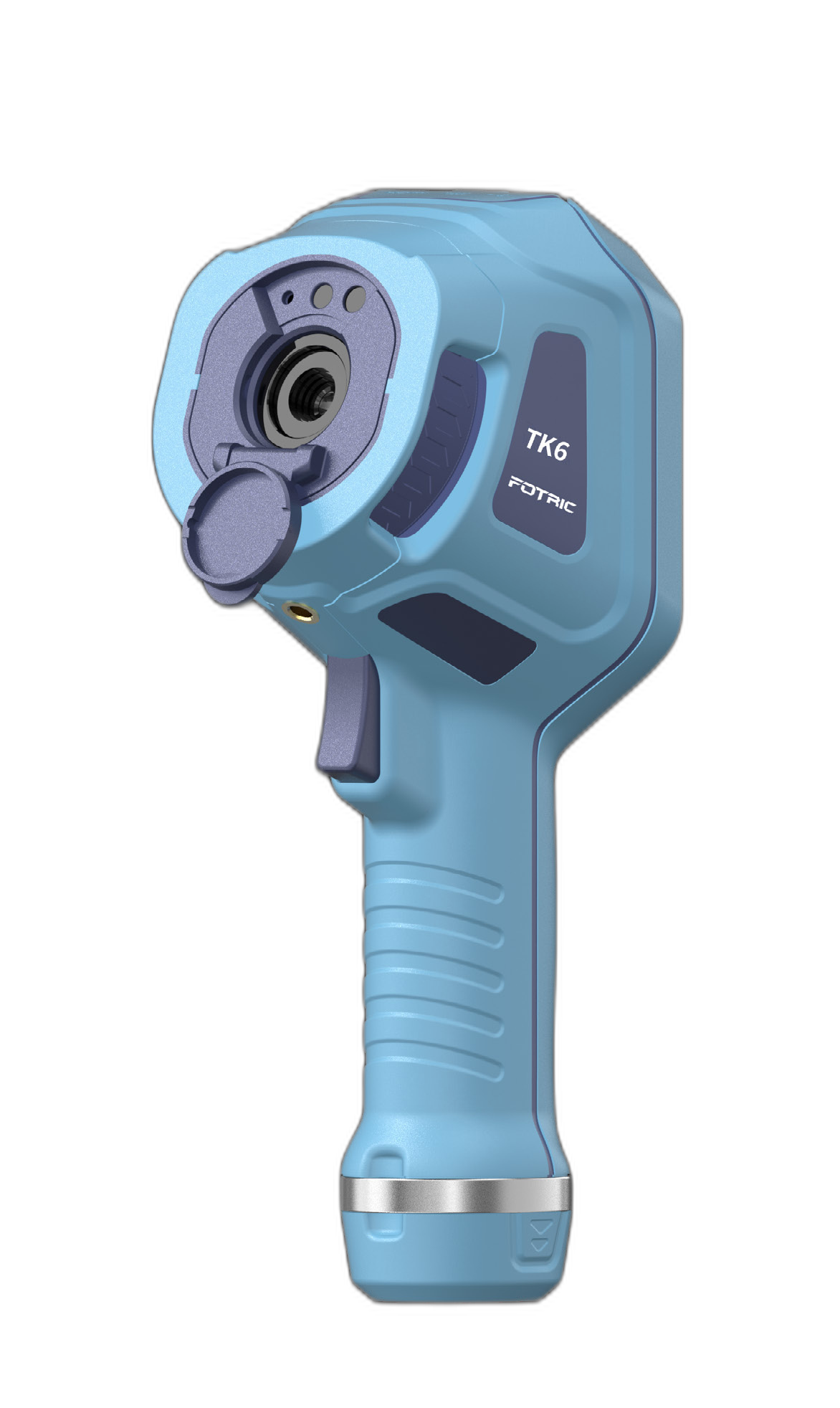

The manual focus lens—a hallmark of professional imagers—enables precise clarity across varying distances, ensuring accurate temperature readings whether the target is near or far. In contrast, focus-free entry-level cameras can only measure accurately at a single fixed range. -
Smart Tools for Faster Diagnostics

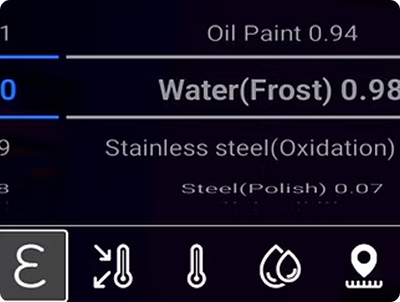

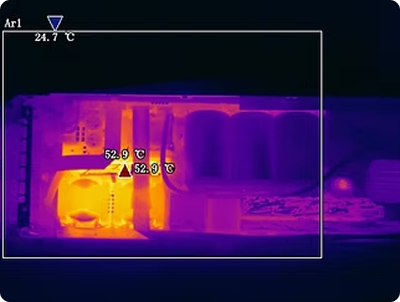

Features include auto hot/cold spot tracking, adjustable emissivity, and real-time color alarms for temperature thresholds. Ideal for:-

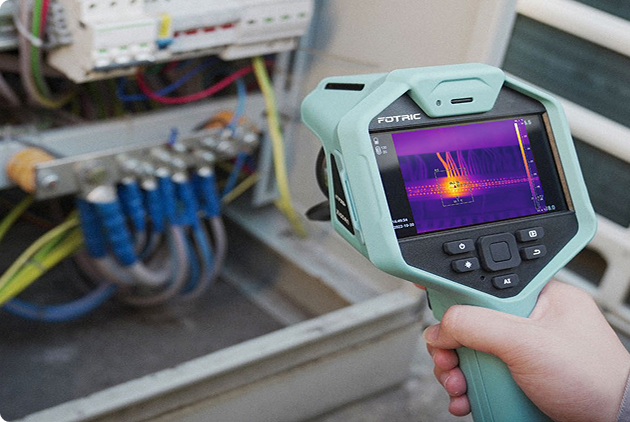

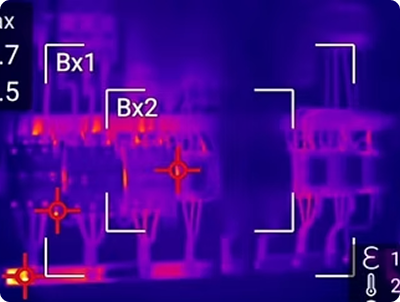

Electrical inspections – locate overloaded circuits or faulty connections
-
HVAC inspections – identify refrigerant leaks or ductwork inefficiencies
-
Building inspections – detect moisture intrusion or energy loss behind walls
-
Home inspections – floor heating issues, house leaks, sewer blockages
-

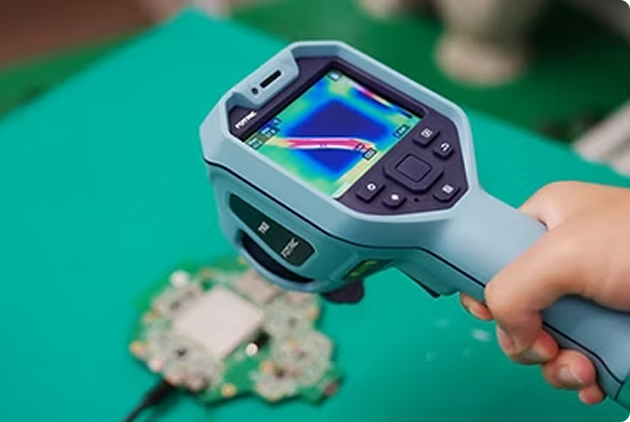

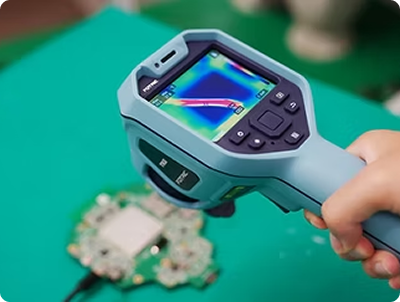

PCBA inspections – manual focus enables detection of abnormal temperature distribution; clear images can be captured at distances as close as 10 cm
-
-
Image Modes & TWB Feature

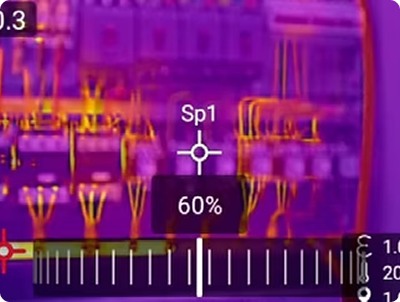

TK6 offers four image modes: Infrared Image, T-DEF Fusion, Picture-in-Picture, and Digital Camera. The TWB feature dynamically re-scales the color palette based on pixel temperature distribution, allowing inspectors to visualize overall temperature patterns more clearly and accurately. -
Portable & Rugged Design
The thermal camera complies with IP54 standards for dust and water splash protection and offers 2 m drop resistance (IEC 60068-2-32 tested). A 3.5" touchscreen and 5 MP visual camera ensure clear documentation in bright sunlight or dark environments. Stores JPG thermal images on a 32 GB TF card. Includes one removable 5000 mAh Li-ion battery providing 4+ hours of continuous use, with USB-C fast charging (approximately 2.5 hours to full). Weighs just 1.59 lbs (0.72 kg).
Order today
--
Ready by
--
Est. delivery
--
Specifications
- Image Frame Rate 30Hz
- Measurement Spot 20
- Measurement Line 10
- Measurement Area 10
- Image Mode Thermal image, Digital camera, Picture in Picture & T-DEF® blend
- T-DEF® Support, thermal and visible light image blend, transparency 0% ~100%
- T-TWB® Support histogram thermal color display
- Infrared Resolution 384x 288
- IR Detector Type Uncooled FPA infrared detector
- Thermal Sensitivity（NETD) 40mk(0.04° C)@30° C(86 ℉ )
- Detector Pitch 17μm
- Spectral Range 8-14μm
- Field of View (FOV) 25° x 19°
- Spatial Resolution (IFOV) 1.14 mrad
- Minimum Imaging Distance 0.15m
- Focus Mode Manual focus
- Complete Temperature Range -20~550℃ (-4~1022 ℉ )
- Accuracy ± 2℃ (3.6 ℉ ) or ± 2 %, whichever is greater（ambient temperature at 15~35° C(59~95 ℉ ) , target object temperature >0° C, calibration at 1 meter)
- Digital Camera 5 MP industrial camera
- Battery Type Rechargeable Li-ion, 3.6V, 5000mAh,≥ 4 hours
Product Guides and User Manual (PDF)
J
This thermal imaging camera works well and is easy to use. Camera provides exceptional resolution for its price point. Rugged construction, and comes with a nice case. I don’t have any other camera to compare it, but it does seem to be pretty accurate.
j
In summary I think this camera is worth above and beyond what you pay for it. The lower price cameras will not give you the same picture, features and software. Sometimes in life, you need to spend a little bit more to get a lot more. Some of the 256 x 192 cameras out there you don’t know who makes them, and they don’t have a website. They don’t have an Internet presence, and if you need support it could be a problem. I will be giving this five stars but if I could deduct a half a star I would. I wish it had a decent case to protect it.
A
Separate thermal and visual images are needed for complete thermography. The automatic visual image option is not there. even a $3,300 camera having this option. No videoography option. Only reasone to buy the camera is thermal resolution. If the above problem is addressed than it will be usefulone. Otherwise not recommended.
E
I have not seen a camera with Manual Focus at this price point. Let alone the great features this has like 384x288 IR Resolution and Removable Battery.
Took off a star because JPEG post-processing noticeablely degrades the image quality of the photos taken and no settings to change this. Most cameras do this and it's disappointing.
That said the unit itself is made solidly. Also the most consistent and accurate temperatures I've personally seen in a thermal camera. The built-in lens cap, bright flashlight and laser pointer are all useful features.
J
I'll start by saying that I've not used a professional grade version of one of these before. I have no reference point. However, I do have a couple of friends that have used them and indicated that this seemed to live up to what they had seen in much more expensive units.
I was like a kid in a candy shop finding all the cold spots in our house and making notes of where to check insulation, which doors needed weather strips replaced, which recepticles on outside walls needed a seal added. Also tried it with some circuit boards (My computer and a raspberry pi) and I was able to see which traces had even the slightest difference in temperature.
Speaking of that. I pointed it at my load center (breaker box) and it showed the slightest difference in temperature. I quickly identified that my washer was running (it was) and the server closet from the subtle differences in heat even though I could not tell a difference with my bare hand.
Really nice find and I can use this for so much!
