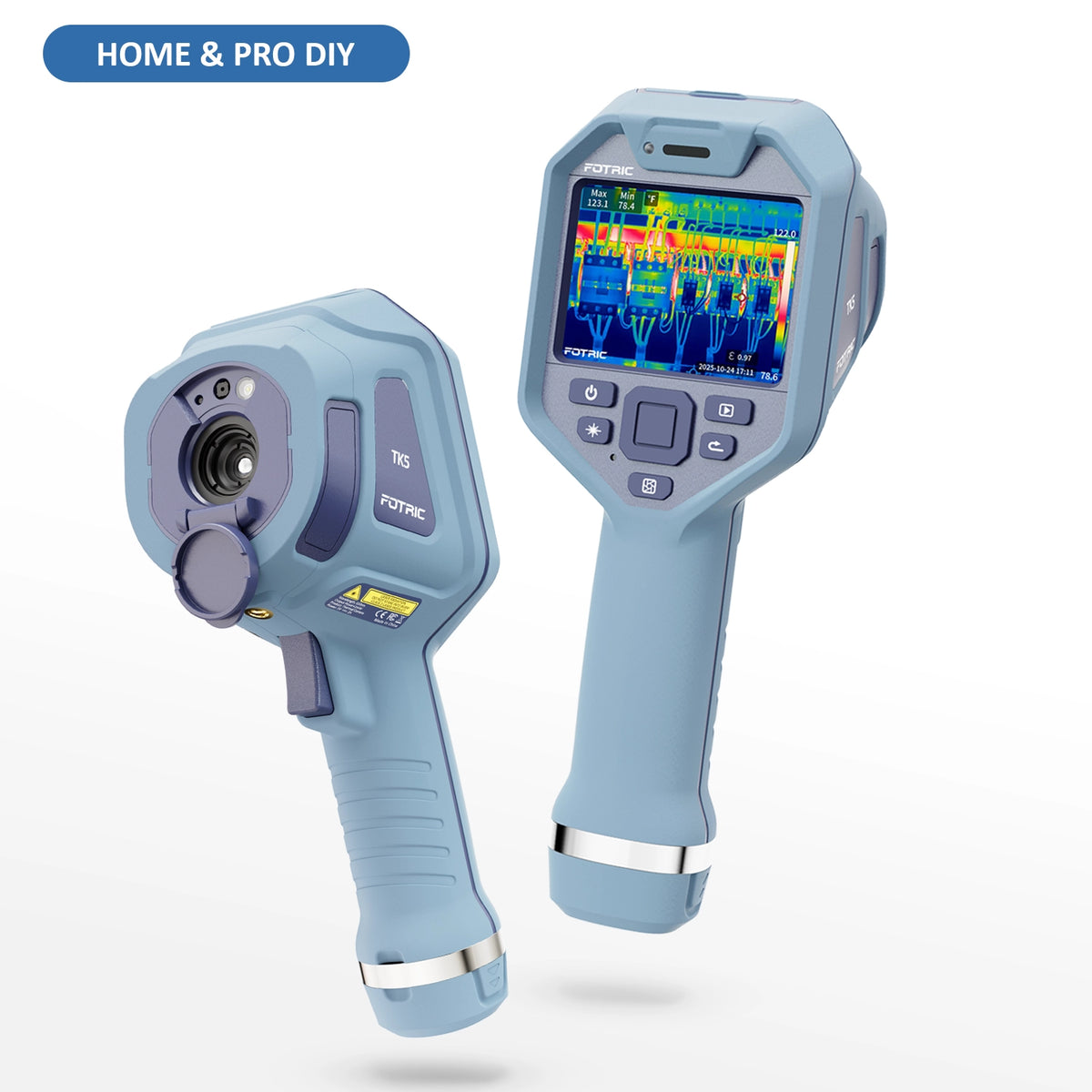

FOTRIC TK5 Thermal Imaging Camera
$709.99
FOTRIC TK5 Thermal Imaging Camera
320×240 IR Resolution, 49°×37° Wide FOV, Focus Free Design, Built-in 5MP Digital Camera, 3.5" IPS Touchscreen, for Industrial Inspection, HVAC and Electrical Maintenance
- Prix habituel
- $709.99
- Prix soldé
- $709.99
- Prix habituel
-
Frais de port calculés à la caisse.
Description
- Professional-Grade 320×240 true thermal resolution delivers 76,800 raw pixels via high-quality ceramic infrared detector. Unlike software-interpolated devices, FOTRIC TK5 captures real pixel-by-pixel thermal data for stable and accurate industrial inspection.
- Featuring 12 µm pixel-pitch design and 40mK (0.04°C) thermal sensitivity, the camera detects subtle temperature differences clearly with high contrast. It efficiently spots electrical hotspots, insulation defects, HVAC malfunctions and hidden building faults.
- Equipped with practical built-in diagnostic tools: auto hot/cold spot tracking, adjustable emissivity and customizable temperature color alarms. Perfect for electrical maintenance, HVAC troubleshooting, building moisture detection and home inspection tasks.
- Support 4 flexible image modes: Infrared, T-DEF Fusion, Picture-in-Picture and Digital Camera. Adopted TWB Thermal Wavelength Balancing technology to optimize color palette distribution, presenting temperature differences more intuitively for faster diagnosis.
- IP54 dust & water resistant with 2-meter drop protection, perfectly built for job-site use. The 3.5” IPS touchscreen and 5MP visible camera ensure clear viewing even under strong light. Weighing only 1.59 lbs, paired with a swappable 5000mAh battery for 4+ hours runtime, plus a 32GB TF card for convenient image storage.
Order today
--
Ready by
--
Est. delivery
--
Specifications
- Product Model 30Hz
- Measurement Spot 20
- Measurement Line 10
- Measurement Area 10
- Image Mode Thermal image, Digital camera, Picture in Picture & T-DEF® blend
- T-DEF® Support, thermal and visible light image blend, transparency 0% ~100%
- T-TWB® Support histogram thermal color display
- Infrared Resolution 320×240
- IR Detector Type A ceramic-packaged detector, uncooled FPA infrared detector
- Thermal Sensitivity（NETD) 40mk(0.04° C)@30° C(86 ℉ )
- Detector Pitch 12μm
- Spectral Range 8-14μm
- Field of View (FOV) 49° ×37°
- Spatial Resolution (IFOV) 2.67mrad
- Minimum Imaging Distance 0.4m
- Focus Mode Focus free
- Complete Temperature Range -20℃ ~450℃ (-4~842 ℉ )
- Accuracy ± 2℃ (3.6 ℉ ) or ± 2 %, whichever is greater（ambient temperature at 15~35° C(59~95 ℉ ) , target object temperature >0° C, calibration at 1 meter
- Digital Camera 5 MP industrial camera
- Battery Type Rechargeable Li-ion, 3.6V, 5000mAh, ≥ 5 hours
Product Guides and User Manual (PDF)
R
This thermal imaging camera delivers impressive clarity and usability, making it a strong choice for electrical work, home diagnostics, and building inspections. The 320×240 IR resolution provides sharp thermal detail, and the built?in 5MP visual camera helps capture clear comparison images. The 3.5" touchscreen is responsive and easy to navigate, even when switching between modes on the job. Its wide ?4°F to 842°F temperature range and 49°×37° field of view make it versatile for everything from spotting heat loss to identifying electrical hotspots. The handheld design feels sturdy without being heavy. Overall, it’s a reliable, accurate, and user?friendly tool that performs well in professional and DIY settings.
J
This Fotric TK5 Thermal imaging device features rugged construction with durable materials. The imager offers good resolution and detail for various types of work. Great for detecting leaks and getting a thermal picture of whats actually going on. The device is easy to setup and use out of the box. Appears to be a premium device as reflected by the price tag.
M
This is the king of thermal cameras, it has so many features for different applications. Before we could remodel and add another room onto the house, we needed to see where the electrical wires were so we'd know where to add or bypass an area. Well, this detected all the electrical hotspots easily. The readings were 100% accurate every time. I expected this to be a bit heavy but it isn't, it is lightweight and also heavy duty and durable. Good thing it came with an instruction and information booklet because this has a lot of features, the booklet is very informative. Battery last quite a long time before needing charged. The thermal images are really cool to look at and easy to understand. Value for money this is totally awesome and worth it.
N
My unit arrived ready to go with a charged battery. The rubberized body feels tough and balanced, much like my higher-end FLIR unit, and the overall shape sits comfortably in my hand. Included was an adapter kit for charging the device using any power source from around the world.
It boots quickly and shows clean thermal images with low noise. The native 320x240 resolution gives enough detail for electrical panels, HVAC troubleshooting, insulation gaps, water leaks, and similar jobs. Temperature readings match what I get from my FLIR on the same targets, so accuracy holds up. The wide range covers -4°F to 842°F, and the field of view suits most field tasks. Fusion mode that overlays thermal on visible helps place heat patterns quickly, and the 5MP visual camera records clear reference shots. The removable battery plus USB-C charging keeps things practical when work runs long.
The fixed-focus lens works fine for typical distances, and the tripod thread adds stability when needed.
Several issues cut into the experience. The touchscreen responds unevenly, with zones that ignore taps or need extra pressure, unlike current phones. Menus bury some controls, forcing repeated hunting.
