FOTRIC TD2 Sense Acoustic Imaging Module
- Regular price
- $1,234.00
- Sale price
- $1,234.00
- Regular price
-
-

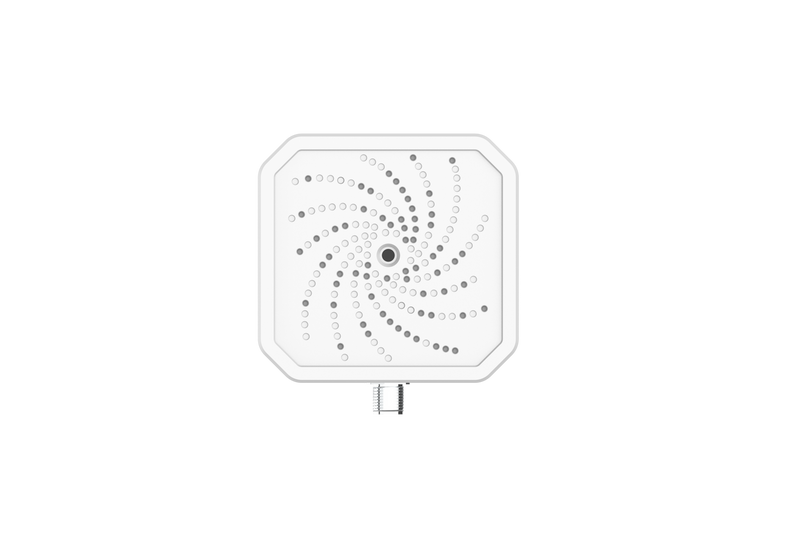

Compact Acoustic Imaging Module with 64 MEMS Microphones
Equipped with 64 high-performance MEMS digital microphones and a 66° × 52° field of view, TD2 Sense delivers reliable acoustic imaging capability in a compact, lightweight form factor—enabling accurate sound source localization for embedded and integrated applications. -
Wide Frequency Coverage for Industrial Sound Detection
Operating across a 2–65 kHz frequency range, TD2 Sense detects both audible and ultrasonic signals, making it suitable for compressed air and gas leak detection, mechanical noise analysis, and early-stage fault identification. -
Flexible Working Distance for Diverse Scenarios
Supports a broad 0.3 m to 100 m working distance, allowing TD2 Sense to adapt to close-range inspections as well as long-distance acoustic detection in industrial and infrastructure environments. -
Designed for Integration & Automation
With a lightweight 420 g design, TD2 Sense is ideal for integration into robots, drones, automated inspection systems, and custom platforms, enabling developers and system integrators to add acoustic intelligence to smart inspection workflows. -
Enable Seeing Sound in Smart Systems
TD2 Sense brings acoustic imaging capabilities to automated and embedded systems, helping users visualize sound sources, improve inspection efficiency, and reduce the need for manual, contact-based inspections.
FOTRIC develops professional thermal and acoustic imaging solutions for industrial and inspection applications.
FOTRIC thermal cameras are suitable for engineers, electricians, maintenance teams, researchers, and industrial inspection professionals.
Yes, FOTRIC cameras support PC software and mobile applications for analysis, reporting, and real-time monitoring.
FOTRIC provides professional technical support, firmware updates, and continuous software improvements.
Sense the Invisible. Predict the Future.
Real Sensor
- A ceramic-packaged detector, professional benchmark for accuracy and detail
- A true 384×288 infrared detector, ensuring durability, accuracy, and reliability in demanding industrial environments
- A 17 µm pixel-pitch detector, that results in a stronger signal-to-noise ratio and sharper, highercontrast thermal images
Real Focus
- A hallmark of professional imagers, makes true professional imaging achievable for every technician
- Enables users to achieve precise clarity across varying distances, ensuring accurate temperature readings
- With a minimum imaging distance of 0.15m, it can even clearly reflect the temperature of a PCB
Real Professional
- With an IFOV of 1.14 mrad, it's capable of capturing finer temperature differences and achieving more accurate imaging
- 5-megapixel industrial-grade digital camera; Images will remain clear even in report
- 3.5-inch IPS LED touchscreen display with Gorilla explosion-proof glass
Six Professional Edges
T-DEF® Blend Mode
Exclusive T-DEF® visible-light temperature measurement with infrared transparency adjustable from 0%–100%, automatically aligned with IR imaging.
Ultra-close Imaging
Imaging from as close as 0.15 m, ideal for PCBs, electrical connection points, and precision components, breaking the conventional thermal camera application limits.
Measurement Parameter Compensation
Full parameter correction including emissivity,ambient temperature, reflected temperature,and IR window ransmittance, ensuring researchgrade measurement accuracy.
High Refresh Rate
30 Hz high-frame-rate real-time imaging, smooth and lag-free, capturing transient temperature rises and dynamic targets.
Versatile Measurement Tools
Supports 20 measurement points, 10 measurement boxes, and 10 measurement lines, covering complex scenes far beyond comparable products.
Made for Continuous Operation
≥ 4 hours battery life, 2.5 h fast charge to 90%, supports USB-C external power for uninterrupted, all-day operation.
