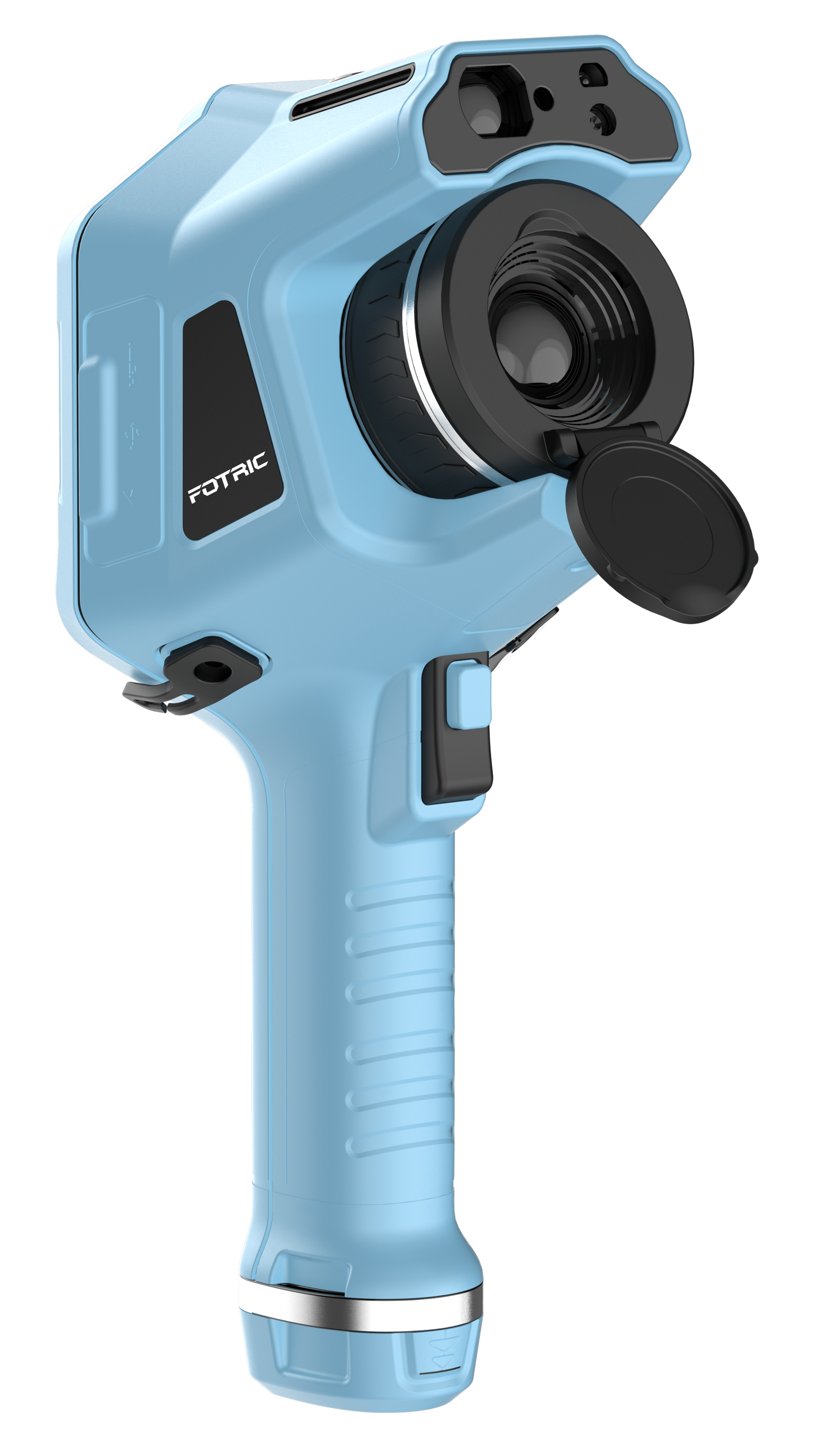

FOTRIC Ti5 Thermal Imaging Camera
- Regular price
- $3,999.00
- Sale price
- $3,999.00
- Regular price
-
-
Advanced Thermal Imaging with Precision Focus
Equipped with a true 384 × 288 infrared detector and a 44° × 33° field of view, TI5 delivers clear, detailed thermal images. Featuring TurboFocus® combined with manual focus, it allows users to achieve sharp imaging quickly while retaining full control for precise inspections. -
Designed for Professional Diagnostics
Ideal for electrical systems, mechanical equipment, HVAC, and building inspections, TI5 enables early detection of overheating, insulation failures, and abnormal thermal patterns—supporting confident decision-making in demanding environments. -
Wide Temperature Measurement Range
Covers temperatures from −4 °F to 1022 °F (−20 °C to 550 °C), making it suitable for both low-temperature monitoring and high-heat industrial applications. -
Thermal & Visual Image Fusion
Integrates an 8-megapixel visual camera with thermal imaging to provide clear visual references, improving fault identification, documentation, and reporting efficiency. -

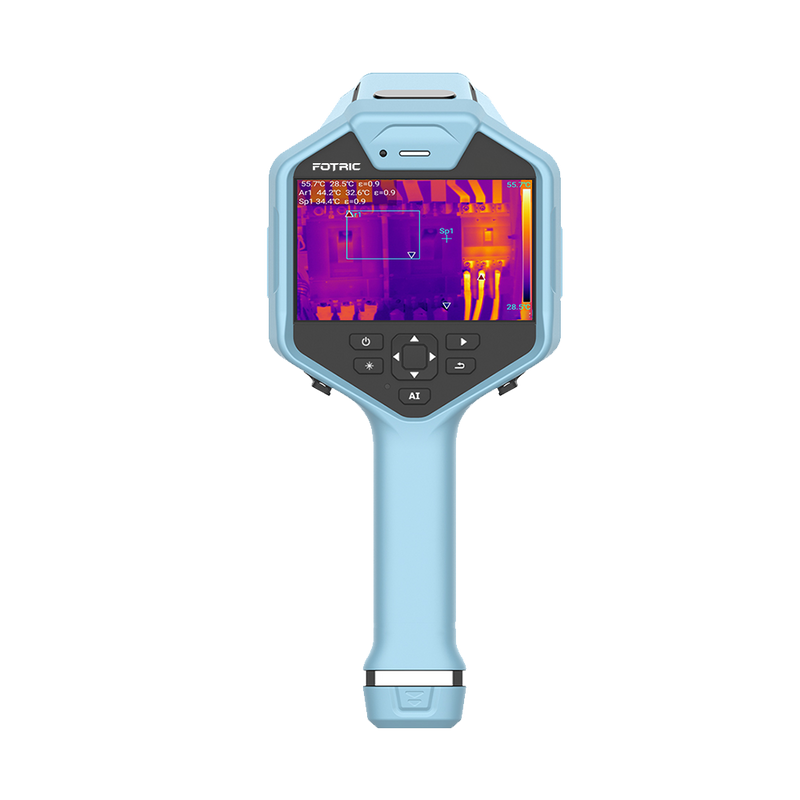

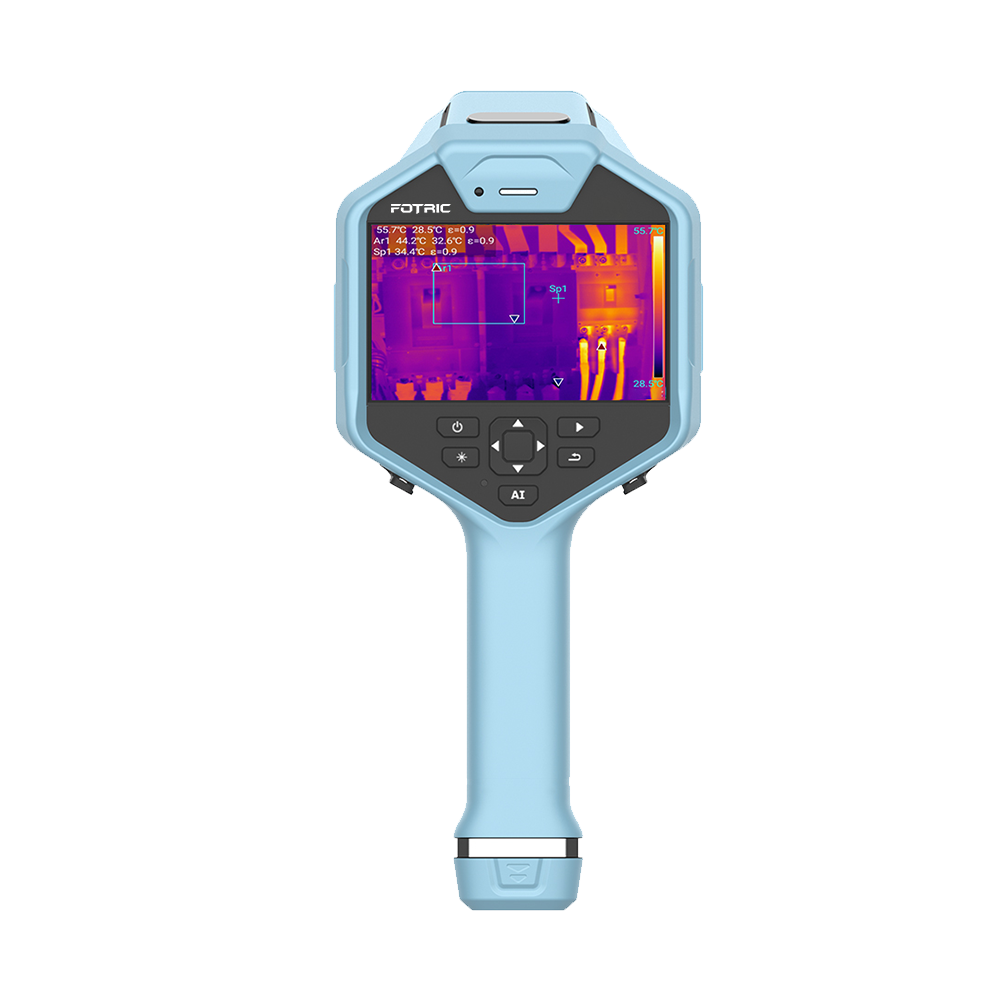

Large Touchscreen & Professional Workflow
The 5" high-resolution touchscreen offers an intuitive user interface and clear thermal visualization, enabling efficient inspections and streamlined workflows in the field.
FOTRIC develops professional thermal and acoustic imaging solutions for industrial and inspection applications.
FOTRIC thermal cameras are suitable for engineers, electricians, maintenance teams, researchers, and industrial inspection professionals.
Yes, FOTRIC cameras support PC software and mobile applications for analysis, reporting, and real-time monitoring.
FOTRIC provides professional technical support, firmware updates, and continuous software improvements.
Sense the Invisible. Predict the Future.
Real Sensor
- A ceramic-packaged detector, professional benchmark for accuracy and detail
- A true 384×288 infrared detector, ensuring durability, accuracy, and reliability in demanding industrial environments
- A 17 µm pixel-pitch detector, that results in a stronger signal-to-noise ratio and sharper, highercontrast thermal images
Real Focus
- A hallmark of professional imagers, makes true professional imaging achievable for every technician
- Enables users to achieve precise clarity across varying distances, ensuring accurate temperature readings
- With a minimum imaging distance of 0.15m, it can even clearly reflect the temperature of a PCB
Real Professional
- With an IFOV of 1.14 mrad, it's capable of capturing finer temperature differences and achieving more accurate imaging
- 5-megapixel industrial-grade digital camera; Images will remain clear even in report
- 3.5-inch IPS LED touchscreen display with Gorilla explosion-proof glass
Six Professional Edges
T-DEF® Blend Mode
Exclusive T-DEF® visible-light temperature measurement with infrared transparency adjustable from 0%–100%, automatically aligned with IR imaging.
Ultra-close Imaging
Imaging from as close as 0.15 m, ideal for PCBs, electrical connection points, and precision components, breaking the conventional thermal camera application limits.
Measurement Parameter Compensation
Full parameter correction including emissivity,ambient temperature, reflected temperature,and IR window ransmittance, ensuring researchgrade measurement accuracy.
High Refresh Rate
30 Hz high-frame-rate real-time imaging, smooth and lag-free, capturing transient temperature rises and dynamic targets.
Versatile Measurement Tools
Supports 20 measurement points, 10 measurement boxes, and 10 measurement lines, covering complex scenes far beyond comparable products.
Made for Continuous Operation
≥ 4 hours battery life, 2.5 h fast charge to 90%, supports USB-C external power for uninterrupted, all-day operation.
